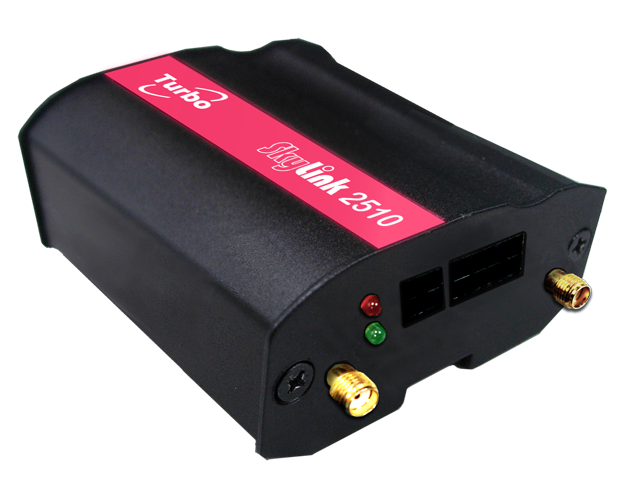

SKYLINK 2150 sending vehicle’s essential data to vehicle monitor center via proven and stable GSM/3G communication network, it is fit for logistic and trucks company to trace consignment and dispatch vehicles efficiently, supervisors and vehicle drivers communicate with control center real-time. The GPRS transmit duration can be flexible settings for saving traffic of data package and communication expenses.
Characters：
‧Input voltage: 9~30V
‧Working current: peak: 150mA/@12V
standby: 75mA/@12V
‧Operating temperature: -10℃~55℃
‧Storage temperature: -40℃~65℃
‧IO Interface: Input x 2 ,Output x 2 ,RS232 x 1
ACC Input x 1 , Analog Input x 1
‧LED display: GPS, 3G
‧SIM: 3G WCDMA/UMTS Dual-band: 900/2100 MHz
2G GSM/GPRS/EDGE Quad-band: 850/900/1800/1900 MHz
‧GPS module: U-BLOX GPS
‧RAM: 4MB
‧Data output: GPS device number, longitude and latitude,
speed, direction, date, time and status
‧Size: 30 x 67 x 87 mm
‧Installation: External fix and self-adhesive

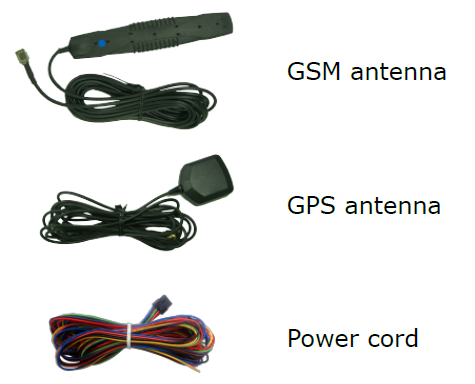

Accessories：
|
